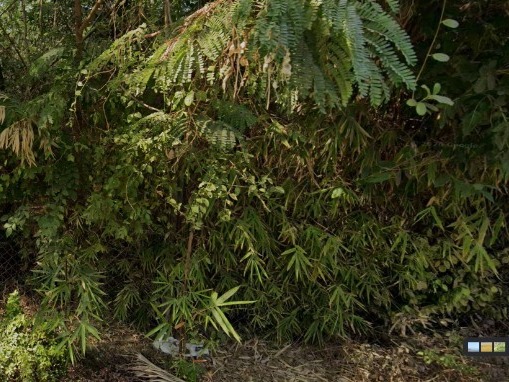

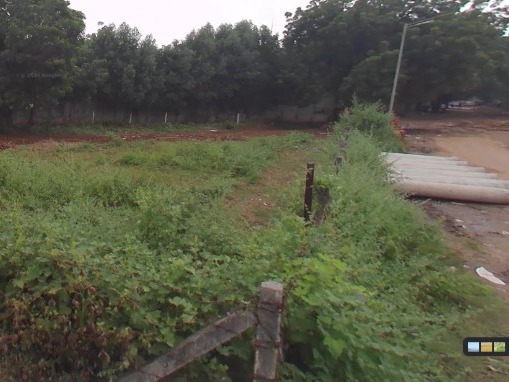

Plot 1
Case studies Ecological case study
5.1-Acre High-Density Biodiverse Miyawaki Restoration
Large-scale ecological restoration transforming severely degraded land into a resilient, multi-layered forest ecosystem—Miyawaki-inspired afforestation adapted to arid local conditions.
Implemented for SPEC India · Makarba, Gujarat
- Total area
- 5.1 acres
- Trees / plants
- 92,000+
- Species / cultivars
- 360+
- Survival rate
- 90%+
1. Project overview
Restoration was implemented across three interconnected plots totaling 5.1 acres, with more than 92,000 trees and plants representing 360+ species and cultivars established through phased interventions. Progressive phasing enabled adaptive ecological refinement, expanded biodiversity integration, and long-term landscape stabilization.
Restoration objectives
The primary objective was to rehabilitate a heavily degraded construction waste site into an ecologically established, multi-layered forest ecosystem capable of long-term biodiversity regeneration—prioritizing ecological resilience and system development over ornamental plantation outcomes.
- Restoration of soil vitality
- Improvement of hydrological performance
- Acceleration of ecological succession
- Increase in biodiversity density
- Carbon sequestration
- Air quality improvement
- Rebuilding of long-term ecosystem function
Phase breakdown
Each phase introduced increasing ecological complexity, expanded species diversity, and refined planting strategies based on observations from prior establishment cycles.
-
1
July 2023
20,000 plants · 1.1 acres
- Plot 1 — 0.25 acres (new)
- Plot 2 — 0.60 acres (new)
- Plot 3 — 0.25 acres (new)
-
2
July 2024
40,000 plants · 2.25 acres
- Plot 4 — 0.5 acres (new)
- Plot 5 — 1.75 acres (adjacent to Plot 3)
-
3
July 2025
32,000 plants · 1.75 acres
- Plot 6 — 0.15 acres (adjacent to Plot 2)
- Plot 7 — 1.6 acres (adjacent to Plot 2)
Phase 1/2
Street view imagery
Ground-level before and after views across the primary planting plots — October 2022 baseline compared with January 2026 establishment.

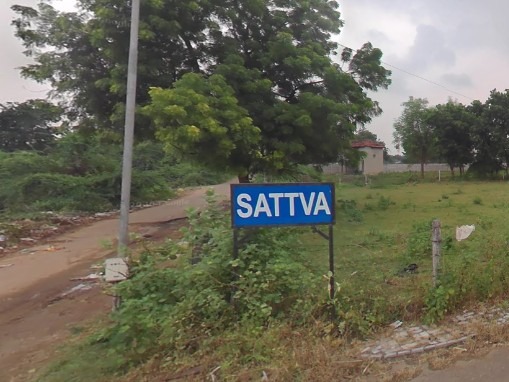

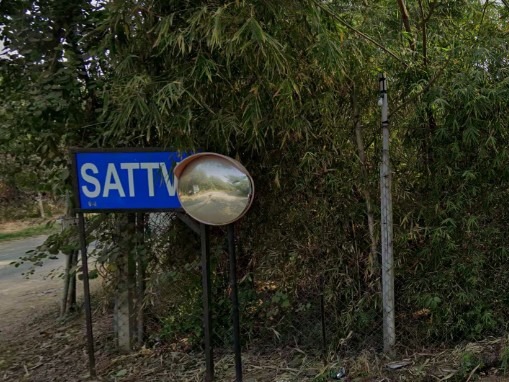

Plot 2

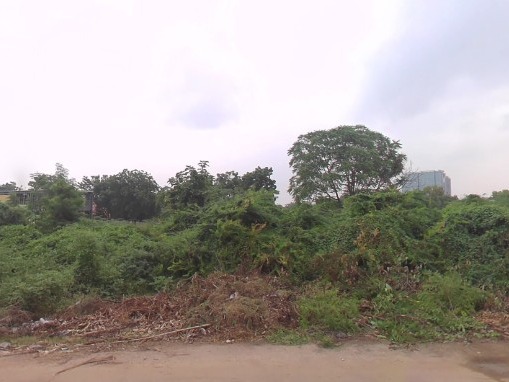

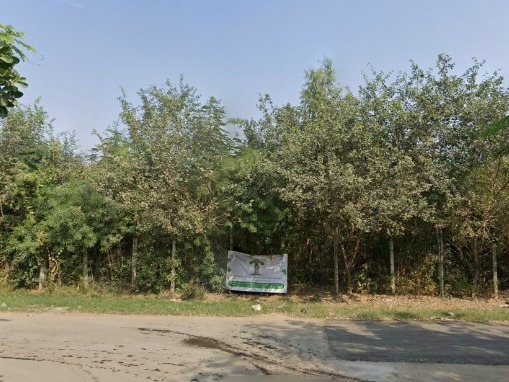

Plots 3 & 5 (adjoining)

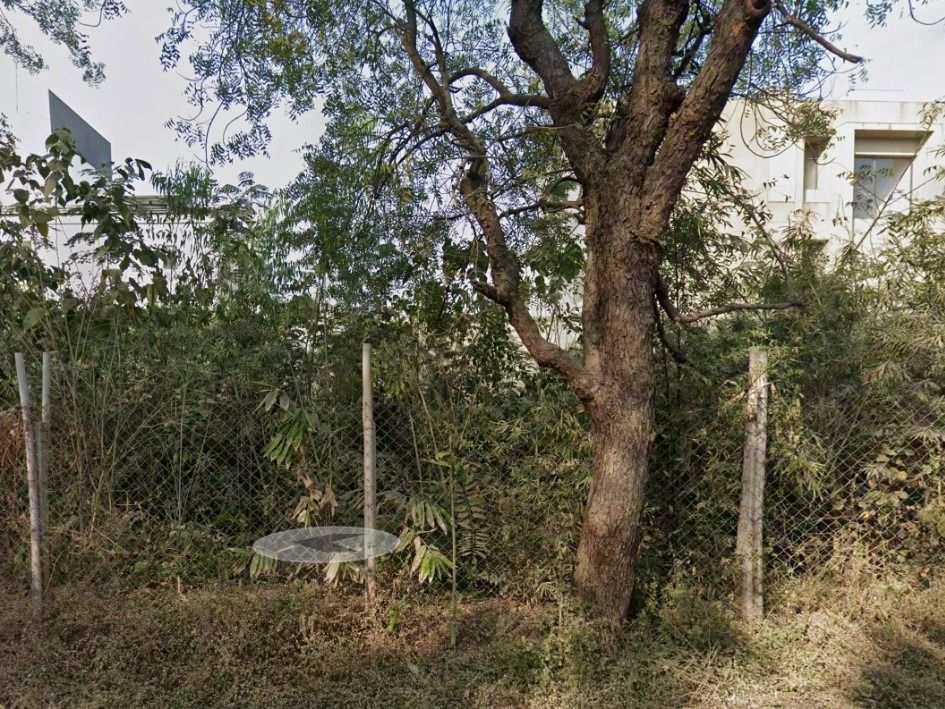

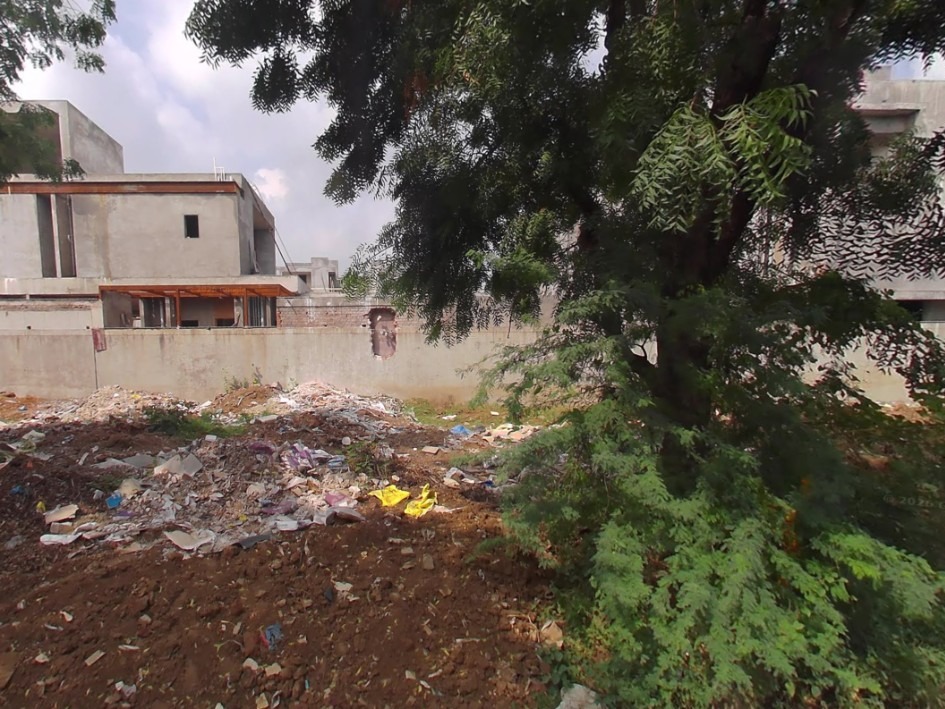

Plot 4
Phase 1–3

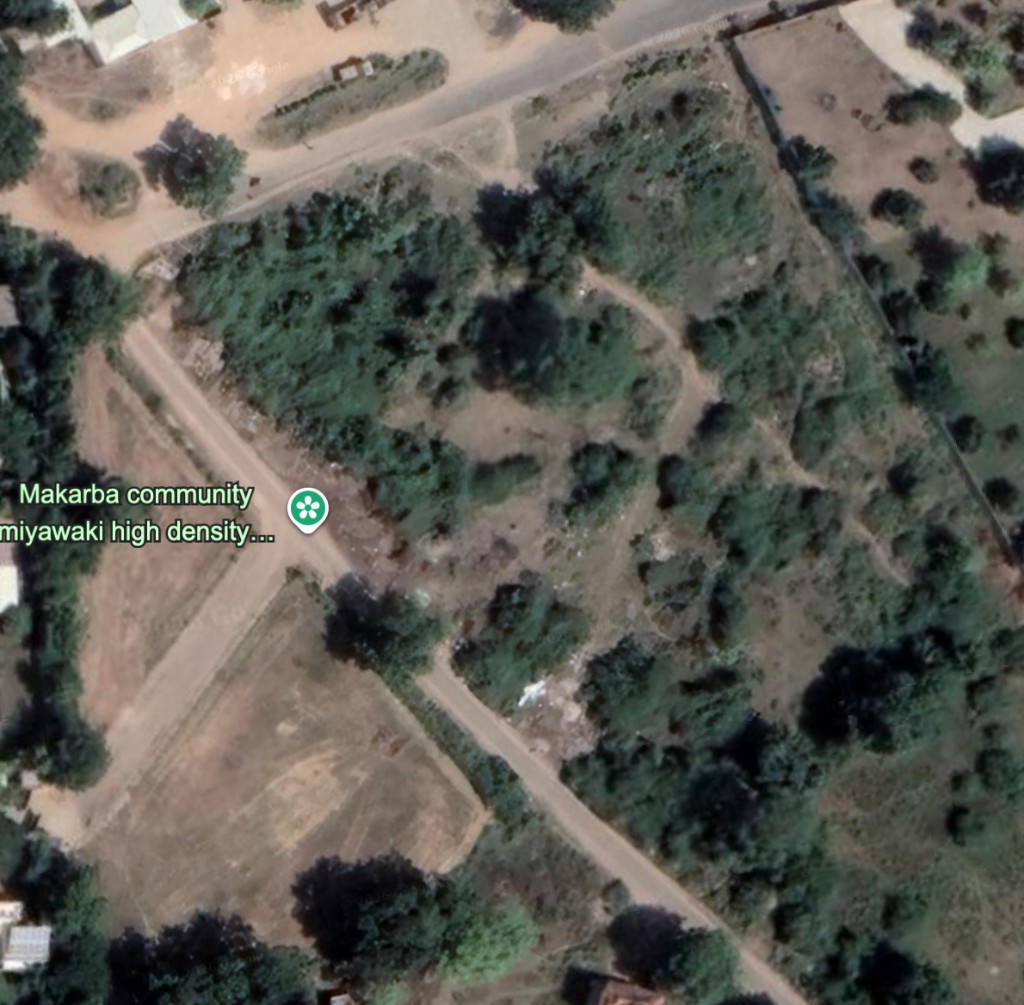

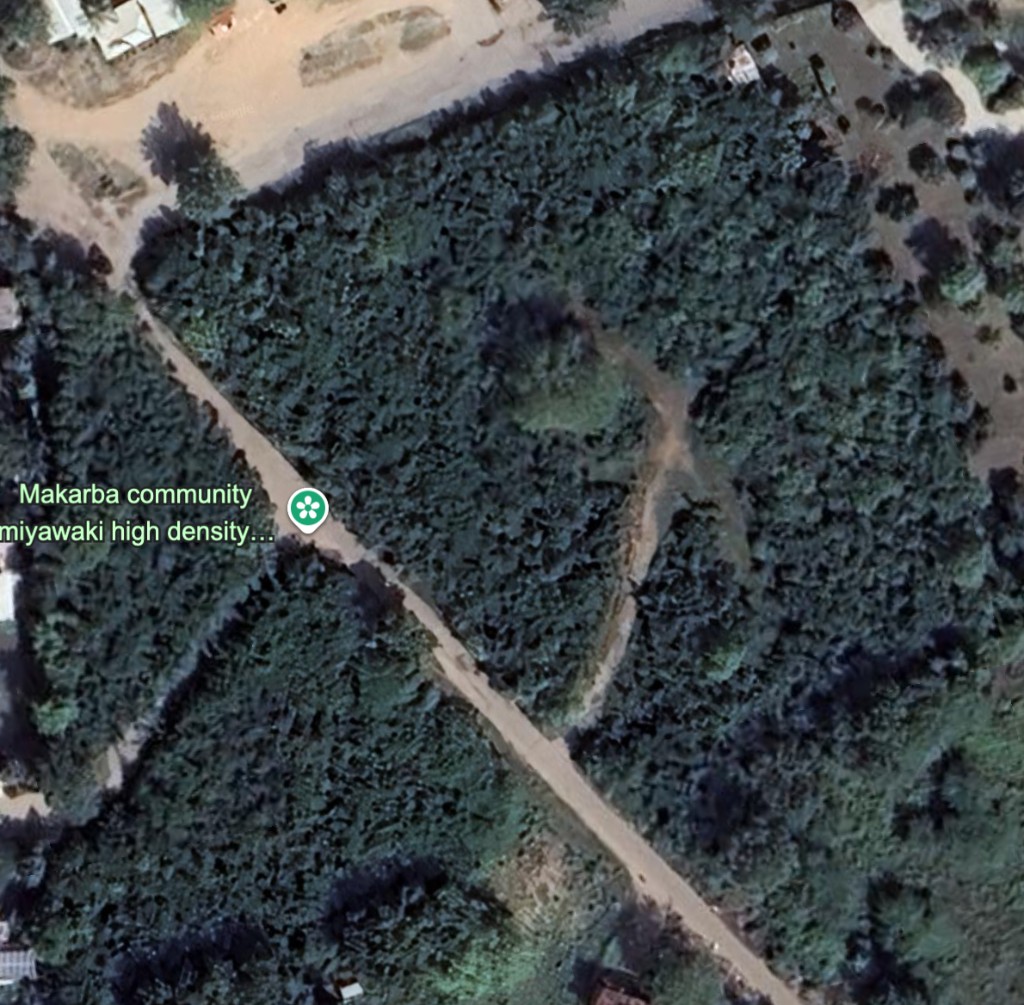

Satellite imagery
Aerial comparison of canopy closure across the Makarba community Miyawaki high-density planting area — October 2022 baseline versus October 2025 establishment.
Project status
Phase 1 (July 2023 – July 2025) is complete. Phase 2 planting is scheduled for completion during the current year. Active maintenance and watering were concluded at 24 months; the established plots are now self-sustaining through natural rainfall and regenerated soil function — no watering, no weeding, no intervention since maintenance concluded.
This project demonstrates the viability of transforming severely degraded landscapes into rapidly developing regenerative ecosystems under extreme climatic stress—distinguished from conventional monoculture plantation by scale, species diversity, and phased biodiversity-first design.
2. Site conditions before work
Prior to intervention, the site exhibited severe ecological degradation and long-term environmental stress.

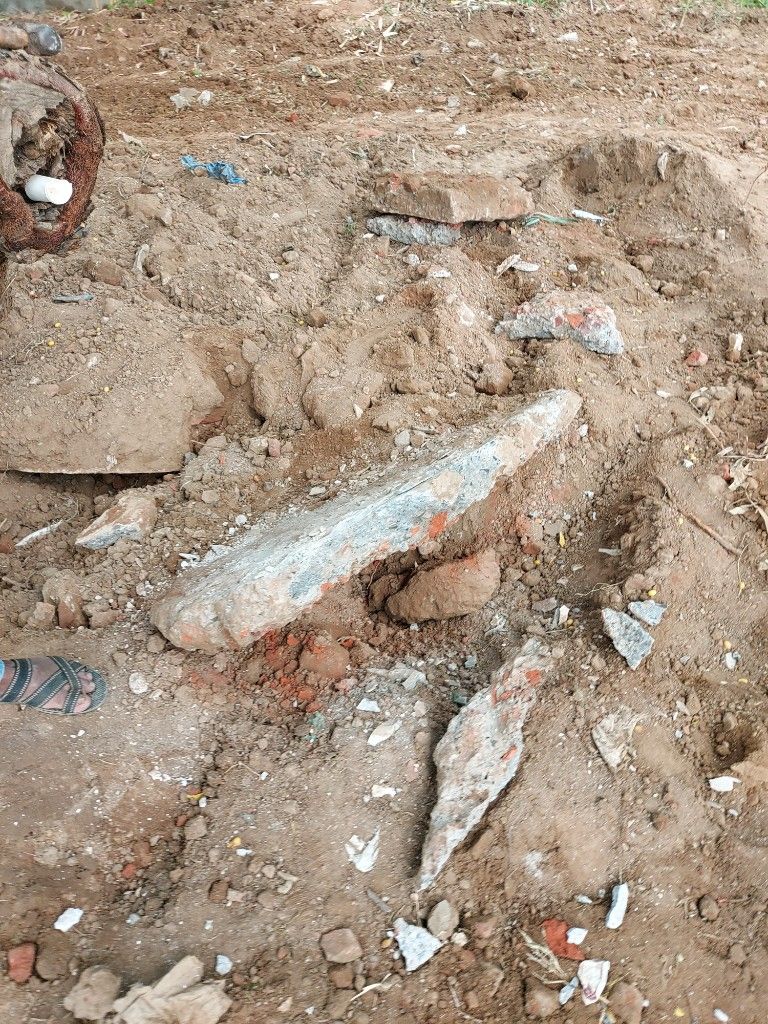

Waste contamination
Construction debris, household plastic waste, rubble, and mixed inorganic material disrupted surface continuity and significantly reduced ecological viability.

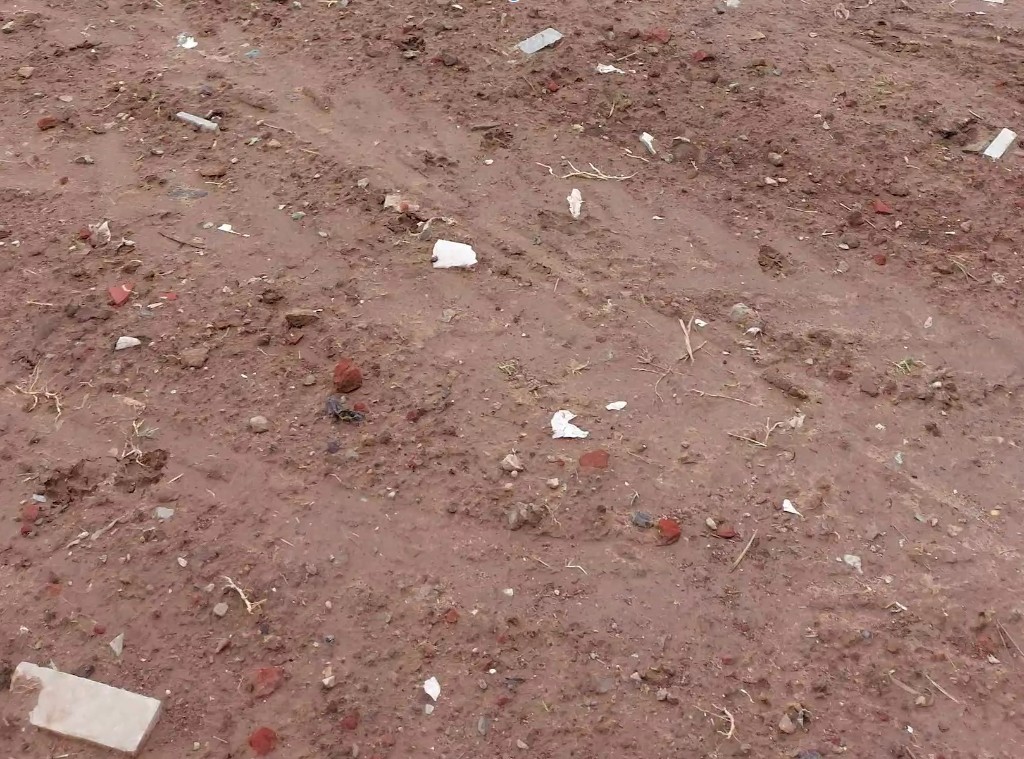

Soil condition
Sandy and structurally weak; low organic matter; highly compacted where debris accumulated; poor moisture retention. Biological activity was extremely limited.

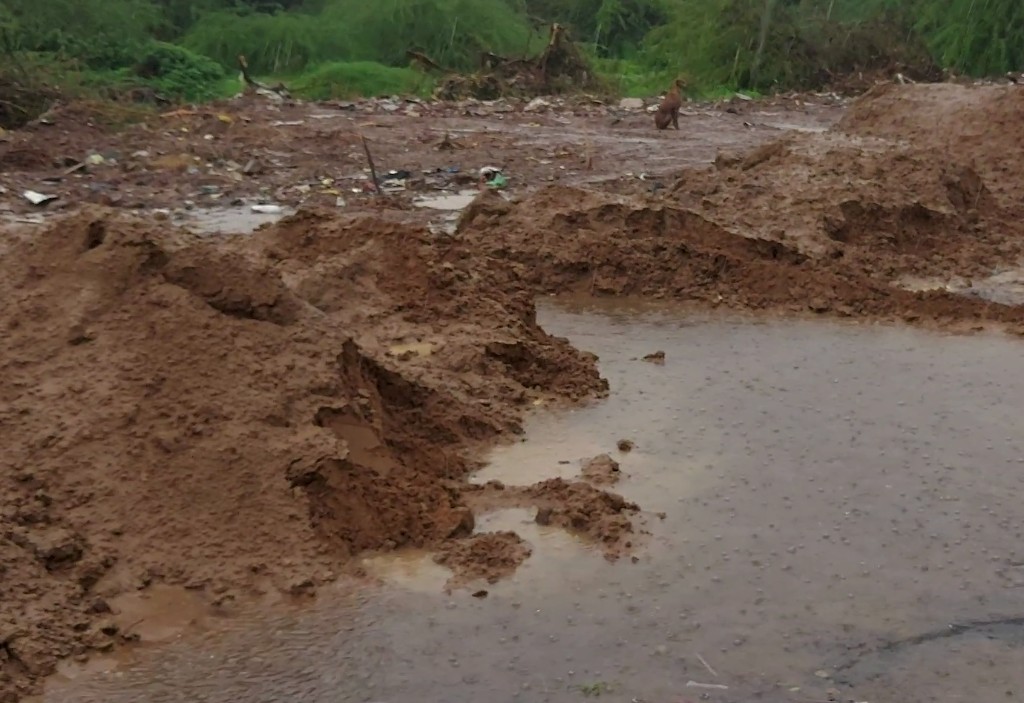

Hydrological instability
Poor infiltration, compaction, and blocked percolation drove alternating cycles of extreme dryness and seasonal monsoon flooding.
Heat exposure
Absence of vegetation caused high surface temperatures, rapid moisture loss, and lack of thermal buffering—the land remained exposed and climatically unstable.

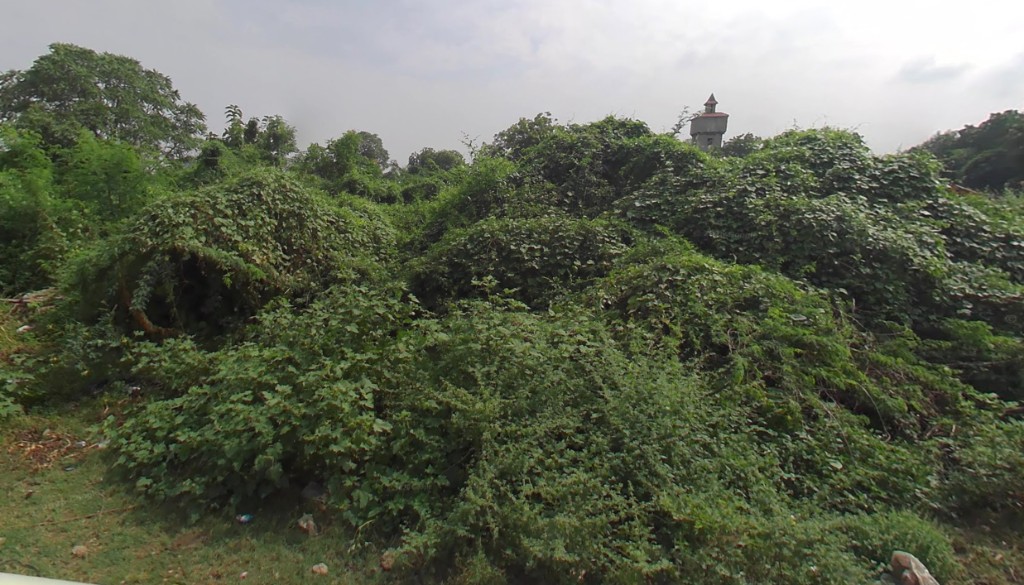

Invasive dominance
Heavy dominance of Prosopis juliflora (Gando Baval) suppressed native regeneration and reduced biodiversity complexity.
Biodiversity deficit
Minimal habitat diversity, low pollinator activity, and absence of structured ecological layers—the ecosystem was functionally degraded and biologically inactive.
3. Ecological strategy
The plantation was designed as an ecologically functional forest ecosystem—not a conventional plantation—with multi-layer architecture, native functional diversity, and high-density logic to accelerate canopy closure and biomass accumulation.
Canopy planning
- Emergent canopy · Upper canopy · Sub-canopy
- Shrub layer · Ground cover
Microclimate regulation, wind reduction, moisture retention, and rapid canopy closure.
Native layering
Species distributed by functional role, root depth variation, shade tolerance, and growth speed—improving soil aeration, nutrient cycling, and habitat complexity.
Succession dynamics
Pioneer species for soil conditioning, shade creation, and biomass generation; natural filtering transitions the system toward stable forest structure over time.
Soil & water function
Organic matter buildup, microbial activation, fungal network development; increased infiltration, reduced runoff, and enhanced soil moisture retention across the plantation.
4. Execution
Field operations combined mechanical and manual site recovery with precision planting, mulching, staking, and tanker-based establishment irrigation at operational scale.
Site clearing & soil prep
- Mechanical removal of large debris; manual clearing of rubble and plastic
- Organic manure addition, mechanical soil mixing, texture and moisture improvement

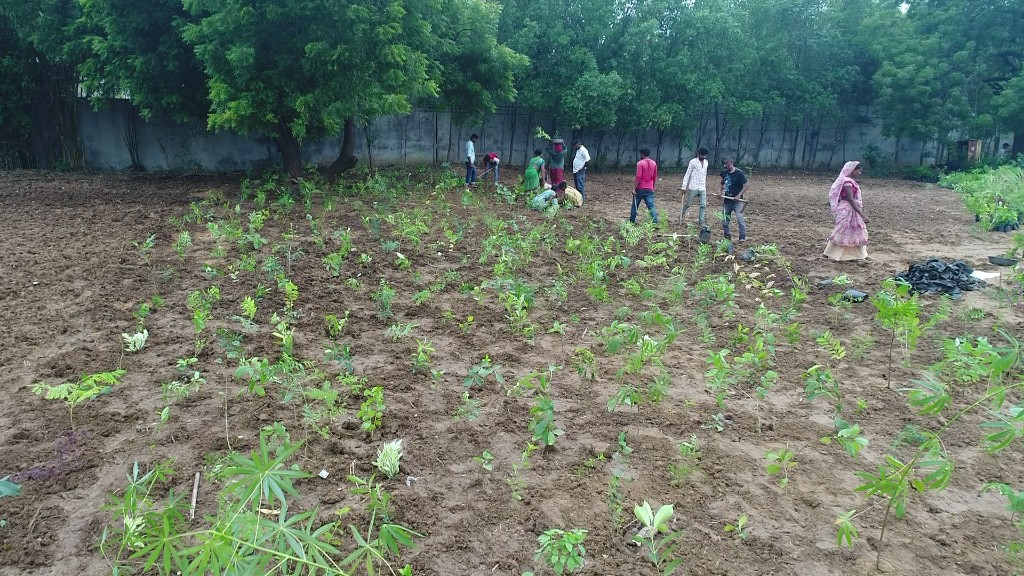

Planting & protection
- Triangular grid spacing (~20 inches); randomized species distribution
- Multi-layer ecological placement; mustard straw mulch site-wide

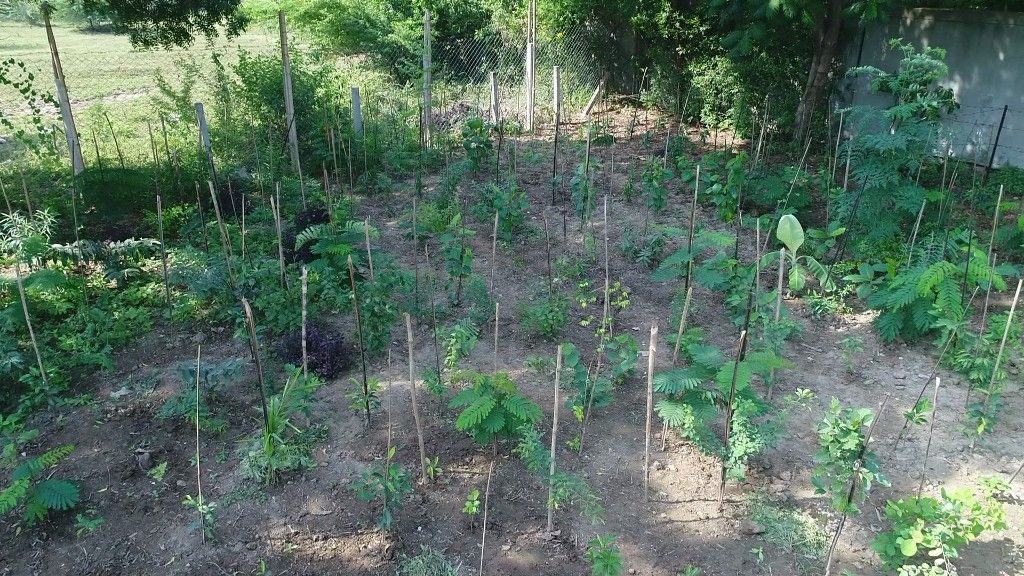

- Individual plant staking; 5,000 L tanker overhead spray during dry establishment
Operational scale
| Team | Size | Capacity |
|---|---|---|
| Tree procurement | 8 members | ~5,000 trees / day |
| Planting | 12 members | ~150 trees / person / day |
| Staking | 12 members | ~200 trees / person / day |
5. Results & ecological impact

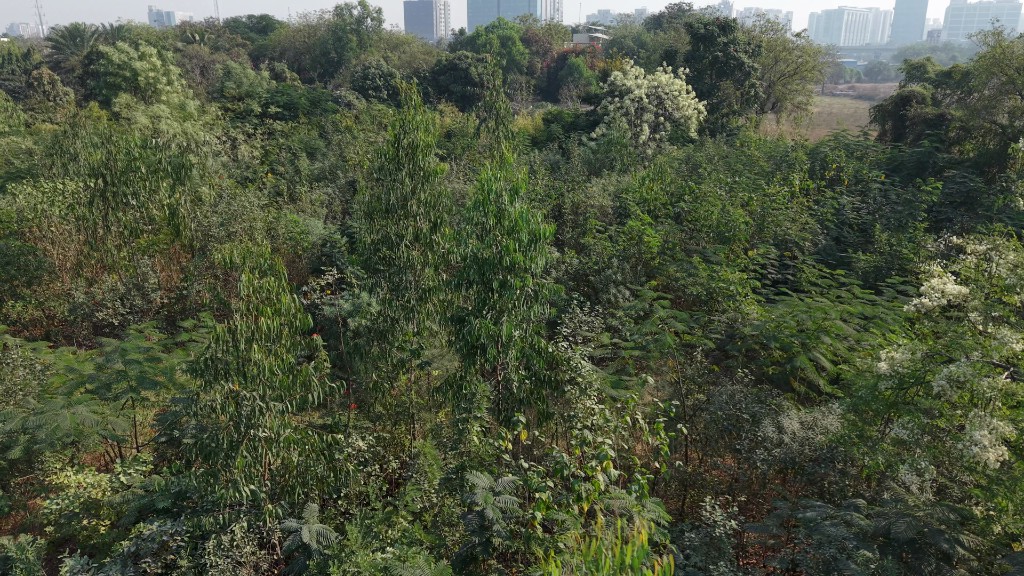

Forest growth
Rapid biomass accumulation indicates strong ecosystem establishment.
- Initial height
- 1–3 ft
- 4 months
- 2–4 ft
- 1 year
- 4–12 ft
- 2 years
- 6–25 ft
Biodiversity return
The site now supports birds, reptiles, amphibians, mammals, and pollinators. Observed species include mongoose, cobra, monsoon frog populations, bats, peacocks, and bee-eaters.
Conclusion
This project demonstrates the successful transformation of a heavily degraded construction waste site into a functioning, biodiverse, and self-regenerating forest ecosystem. Through phased implementation, high-density planting, and ecological system design, the site has transitioned from environmental collapse to active ecological regeneration.
